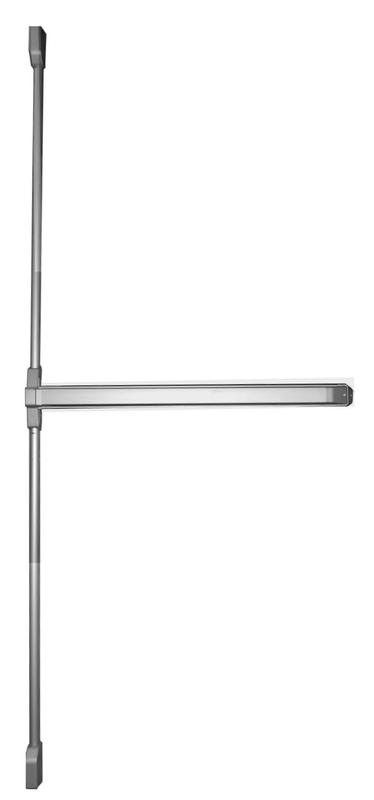

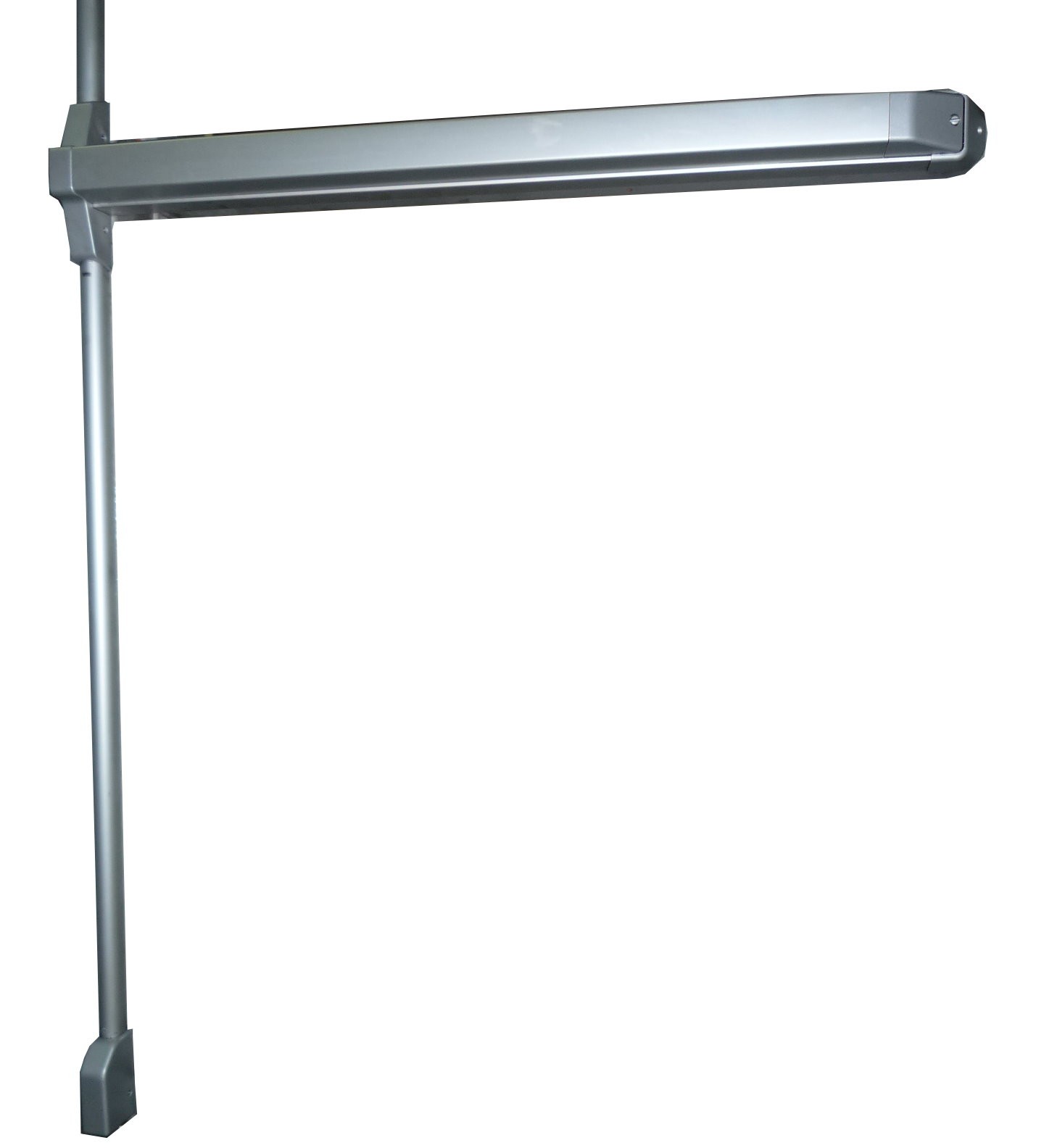

Surface Vertical Rod Exit Devices (7401-36")

  • 74001-36

Well Laud launches new products.  The range includes with Rim Type Exit Device and Surface Vertical Rod Exit Device.


Well Laud provides the best Safety hardware. We produce concealed vertical rod and rim type exit devices in push bar and crossbar styles. All the panic bars  are made in Taiwan and UL listed. All devices can be used in storefront glass doors, aluminum framed, hollow metal, or wood, and suitable for narrow, medium, and wide stile doors.


  • Product name: Surface Vertical Rod Exit Devices / painc bar

  • Product Specifications /Features :

  1. Conforms to UL Listed

  2. ANSI Standard--A 156.3 GRADE 1.

  3. Use on door width from 36"~48" and door height 84"~106".

  4. Surface Vertical Rod features top and bottom bolt design.

  5. Non- Handed.


  • Material: Extruded Aluminum & Die Cast zinc.


  • Finish: Anodized Dark Bronze or Satin Aluminum.

  • Packing Detail:

  1. Size : 36"

  2. Package: 1 set in a Box and 4 Boxes in a carton.

  3. Included in the Box: panic bar, screws pack, conceal vertical rod, installation instruction sheets, latch and hinge end cover.

  4. Special packing request is acceptable.


  1. Uses standard rim cylinder for Key entry.

  2. Pull handle and outside trim are available.


  • Outside trim selection:

  1. Entrance function.

  2. Passage function.

  3. Dummy function.


  • Country of Origin : Taiwan


  • Sales Methods :Export, Manufacture

  • Delivery Time: 50 days after receiving the deposit.

Competitive Price:
Place of Origin: Taiwan, Taichung
Sales Method: Export, Manufacture, OEM/ODM
Payment Term: T/T
Material/Components: Extruded Aluminum and Die Cast zinc
Safety/Quality Approvals: UL listed / ANSI GRADE 1
Type: Surface Vertical Rod
Color: Anodized Dark Bronze or Satin Aluminum.
Accessory: Out Trim、Handle、Cylinder


Well Laud Mfg Corp

WELL LAUD MFG CORP is a leading manufacturer of door hardware and various precision industrial hardware components,finished parts,such as milling parts, stamped parts,plastic injection, etc. We have more than 25 years of experience on this field.

We take great pride in our product quality and we ensure the highest standard in manufacturing and quality control.

We strive to deliver unmatched flexbility, reliability and quality, we accept minimum quantities and will work with you to provide the best delivery schedule possible.
