Well Laud Flush Bolt Guide

A flush bolt guide ensures that flush bolts enter the strike cleanly and securely. By guiding the bolt into the L-shaped strike mounted on the frame, floor, or header, the system improves overall door security, reliability, and lifecycle performance. The FB-01 L Shape Strike is suitable for standard manual or automatic flush bolt installations.

Key Features

• Material: Steel for consistent strength and dimensional stability.
• Mounting: Supplied with 2 screws (3/16 × 3/8) for quick and secure installation.
• Placement: Designed for top and bottom stile applications on paired doors.
• Use Cases: Offices, schools, hospitals, retail, and multi-family buildings with compatible flush bolts.

Why FB-01 Matters

• Guides flush bolts for smooth engagement, minimizing edge wear and installation errors.
• Maintains reliable door closing under frequent usage.
• Simple installation for retrofits or new construction across common door and frame types.

Specifications

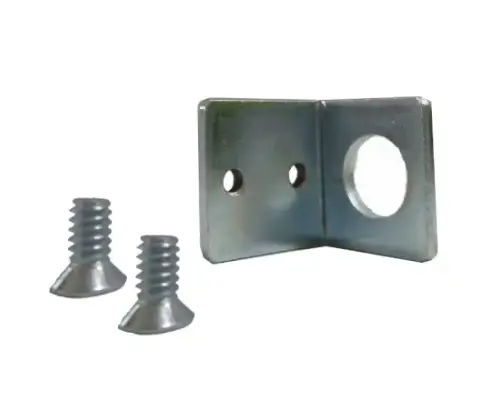

• Type: L Shape Strike for flush bolt guide systems
• Model: FB-01
• Material: Steel
• Fasteners Included: 2 screws (3/16 × 3/8)
• Country of Origin: Taiwan
• Sales Methods: Export, Manufacture
• Standard Lead Time: 20 working days after deposit

Common Questions

• “How do I prevent my flush bolt from scraping the frame?”
  Use an L Shape Strike aligned with the bolt centerline to guide travel.
• “What is best for securing the inactive leaf on double doors?”
  A flush bolt guide with the FB-01 L Strike improves engagement consistency at the header and floor.
• “Can this work on metal frames?”
  Yes. Steel strikes are suitable for timber or metal frames when properly drilled and aligned.

Installation Tips

1. Mark the bolt centerline at the header and floor.
2. Pre-drill pilot holes for the screws.
3. Fix the L Shape Strike in place.
4. Cycle the bolt several times to verify smooth travel.
5. Fine-adjust position to eliminate drag, then fully tighten screws.

Compatibility

• Compatible with manual and automatic flush bolts for commercial doors
• Use with a flush bolt guide to ensure repeatable locking performance.
• Confirm leaf thickness and frame geometry for correct strike placement.
