Flush Bolt
Model：3001
Add to inquiry
Product Description

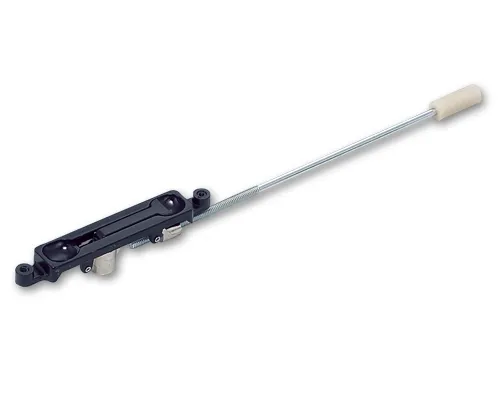

Manufactured in Taiwan by Well Laud Mfg Corp, the Offset Flush Bolt 3001 is a durable, precision‑made locking solution designed for radius‑faced narrow-stile aluminum doors. Made from robust zinc alloy with hardened steel bolt components, it delivers smooth actuation, reliable holding strength, and a concealed, low-profile aesthetic—ideal for commercial and institutional openings. This offset flush bolt is crafted with precision and performance, making it an ideal choice for office, retail, and public door applications.
Key Features
- Offset design: 1/8" or 1/4" offset to match common radius‑faced narrow-stile aluminum doors, ensuring precise bolt-to-keeper alignment and smooth engagement.
- Adjustable reach: 5/8" rod length adjustment accommodates field tolerances and door/frame variations.
- Complete kit: Includes extension rod with nylon tip, nylon keeper, and screws for ready-to-install convenience.
- Consistent performance: 13/16" (20.6 mm) backset and 3/4" throw provide dependable locking travel and secure retention.
Why Well Laud Matters
- With decades of manufacturing excellence and rigorous in-house quality control, Well Laud has earned a global reputation for reliability and professionalism.
- Our production processes adhere to the highest industry standards, ensuring we meet the exacting demands of door hardware professionals, OEMs, and international distributors.
Technical Specifications
- Backset: 13/16" (20.6 mm)
- Throw: 3/4"
- Offset: 1/8" or 1/4"
- Mounting holes (C-C): 5-7/32"
- Rod length adjustment: 5/8"
- Material: Zinc alloy body; steel bolt; nylon tip and keeper
- Finishes: Aluminum or dark bronze painting
- Net weight: 220 g per set (with rod)
- Country of origin: Taiwan
- Standard Lead Time: Approximately 50 working days upon receipt of deposit
Applications & Compatibility
- Target Doors: Designed for radius‑faced narrow-stile aluminum doors, commonly found in office, retail, education, healthcare, and public buildings.
- Security & Aesthetics: The offset flush bolt profile ensures proper bolt-to-keeper alignment in slimmer stiles while maintaining a concealed, tamper-resistant appearance.
- What’s Included: Flush bolt body, Robust steel extension rod with nylon tip, Nylon keeper, and Screws pack.
Installation Steps
- Measure and Mark: Confirm door width and offset; mark the precise centerlines for the bolt and frame receiver based on the technical template.
- Prepare Door Stile: Cut the opening on the face of the door stile and drill mounting holes as specified.
- Install Rod Guide: Mount the rod guide to the door’s top rail edge to provide a stable path for the extension rod.
- Connect Rod to Body: Thread the steel extension rod into the flush bolt body before inserting the assembly into the door.
- Insert and Mount: Guide the rod through the pre-installed rod guide while sliding the bolt body into the prepared recess; secure the body with the provided screws.
- Prepare Strike Hole: Locate the strike position on the door frame’s top jamb and drill the receiver hole to the required depth.
- Adjust and Secure: Fine-tune the rod height so the nylon tip engages the frame properly when extended; tighten the locknut to secure the rod to the bolt body.
Packaging & Delivery
- Standard Packaging: 10 sets per inner box; 10 boxes per master carton (100 sets per carton).
- Lead Time: Standard fulfillment is approximately 50 working days upon receipt of deposit.
- Customization: Special packing requests are supported to meet specific project or distribution channel requirements.
