Lever Trim – Entrance 9562OT-E — Exit Device Trim Specifications, Applications, and Ordering

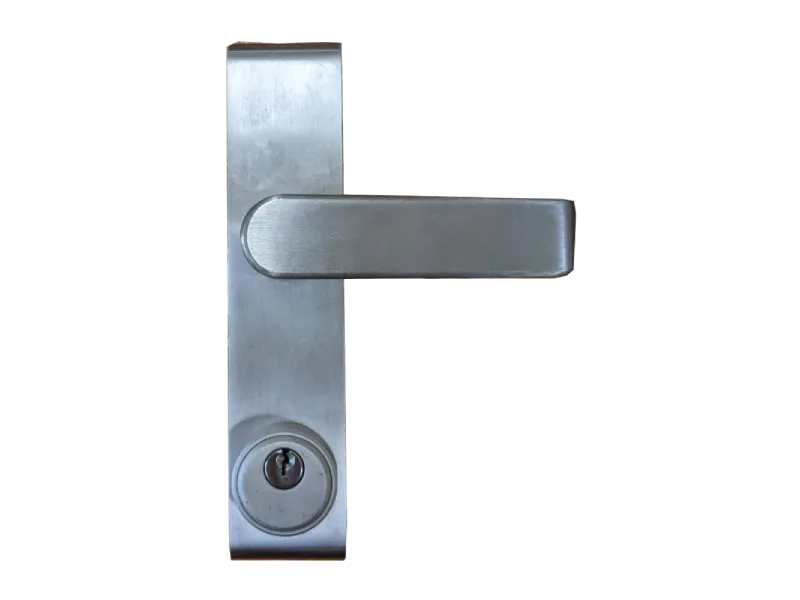

Engineered for high-traffic commercial environments, the 9562OT-E Escutcheon Lever Trim offers a robust, secure exterior access solution for commercial aluminum door systems. Designed for seamless hardware integration, this premium trim connects directly with Well Laud exit devices—allowing the exterior to be securely locked while ensuring the interior remains fully operational for immediate, unrestricted egress at all times.

Crafted with a durable die-cast aluminum body and a clean escutcheon profile, the 9562OT-E combines heavy-duty strength with a contemporary architectural appearance. For ultimate field flexibility, it features a smart field-reversible (non-handed) design that allows installers to easily adjust the lever direction on-site. The trim comes pre-assembled with a premium mortise cylinder and two keys, delivering dependable access control and stable operation for storefronts, office buildings, retail spaces, and institutional facilities.

Key Features

• Dedicated Exit Device Trim: Engineered as an exclusive exterior access solution for compatible Well Laud exit devices.
• Entrance Function: Allows secure, keyed exterior access while ensuring free, unobstructed egress from the interior.
• Wide Door Compatibility: Fits narrow, medium, and wide stile aluminum doors commonly used in commercial buildings.
• Non-Handed Construction: Smart reversible design simplifies site installation and reduces distributor inventory complexity.
• Secure Cylinder System: Pre-assembled with a premium mortise cylinder and two keys for reliable security.
• Exclusive Compatibility: Specifically designed for use with Well Laud exit device models 1062, 7400, and 7401.
• Durable Die-Cast Aluminum Body: Offers a lightweight yet exceptionally strong structure engineered for heavy-duty commercial use.
• Architectural Finishes: Available in bronze liquid coating or clear coat to match modern entrance aesthetics.

Technical Specifications

• Door compatibility: Narrow, medium, and wide stile aluminum doors
• Door thickness: 1-3/4” to 1-57/64”
• Trim dimensions: 1-25/32” W × 7-29/32” H × 1-13/16” D
• Handing: Non-handed (Field-reversible)
• Function: Entrance
• Cylinder: Mortise cylinder with two keys
• Compatible exit devices: Well Laud 1062, 7400, and 7401 only
• Material: Die-cast aluminum
• Finish: Bronze liquid coating or clear paint
• Unit weight: 0.7 kg
• Origin: Made in Taiwan

Applications & Use Cases

To ensure mechanical alignment and reliable operation, the 9562OT-E Lever Trim is compatible with doors equipped with Well Laud 1062, 7400, or 7401 Rim Type Exit Devices. Any hollow aluminum stile storefront door that accommodates these systems is suitable for this exterior lever trim.

• Commercial Storefront Entrances: Suitable for high-traffic retail storefronts, office perimeter doors, and municipal glass entryways utilizing compatible Well Laud rim type exit devices to provide secure, keyed exterior access control.
• Narrow Stile Aluminum Door Systems: Suitable for narrow, medium, and wide hollow aluminum stile door structures as a direct replacement or upgrade for existing compatible rim trim systems.

Installation Overview

• Door Preparation: Transfer the vertical and reference centerlines from the inside face to the outside face of the door. Locate and drill all installation holes precisely as indicated on the template.
• Adjust Handing: To change the lever direction, remove the retaining screw, rotate the handle, and reinstall the screw. Ensure the black side of the star washer faces upwards and tighten securely.
• Pre-installation Function Test: Before mounting, use the key to verify that the cylinder, cam, and lock arm operate smoothly.
• Mount Trim and Secure Screws: Position the trim on the exterior face of the door. Secure the mounting screws tightly into the trim's hex studs.
• Connect and Lock Exit Device: Position the latch end of the interior exit device over the projecting screws. Ensure the actuator shaft projects 1/8” to 3/16” from the door skin for proper engagement, then secure tightly with the washers and nuts.
• Final Verification: Verify smooth key operation and free lever movement to ensure proper linkage before putting into service.

Packaging & Delivery

• Packaging: 1 set per box; 25 boxes per carton
• Box Contents: Lever trim (entrance function) with 2 keys, screws pack, installation instruction sheets
• Lead time: 45 days after receiving deposit
• Origin: Taiwan
• Customized packaging: Available upon request.

Why Choose the 9562OT-E Exit Device Trim

• Designed for Commercial Access Control: Adds secure exterior keyed entry without affecting the interior emergency egress function.
• Targeted Hardware Integration: Specifically engineered to work with Well Laud exit device models (1062, 7400, 7401) to ensure flawless linkage.
• Stable Daily Performance: Robust die-cast aluminum construction supports long-term, high-frequency commercial operation.
• Efficient Field Installation: Non-handed, field-reversible design eliminates site handing errors and reduces installation time.
• Modern Architectural Aesthetics: Clean escutcheon design integrates seamlessly with modern commercial aluminum door systems.

Buyer Considerations

• Verify lock compatibility: Please note that this lever trim is designed exclusively for use with Well Laud 1062, 7400, and 7401 exit devices. It is not compatible with other brands and cannot function as a standalone lockset.
• Check door thickness: Confirm that your door thickness falls within the standard range of 1-3/4” to 1-57/64” before ordering.
• Select the appropriate finish: Choose between bronze liquid coating or clear paint to match your architectural hardware requirements.
• Confirm entrance function: Ensure the "exterior keyed entry with free interior egress" function aligns perfectly with your project's access control needs.
• Verify mortise cylinder specs: Ensure the included standard mortise cylinder meets your project's security and master key system requirements.
