Roller Strike Plate – Exit Device Hardware

Roller Strike S-62-AL/BK — Roller Strike Plate Specifications, Applications, and Ordering

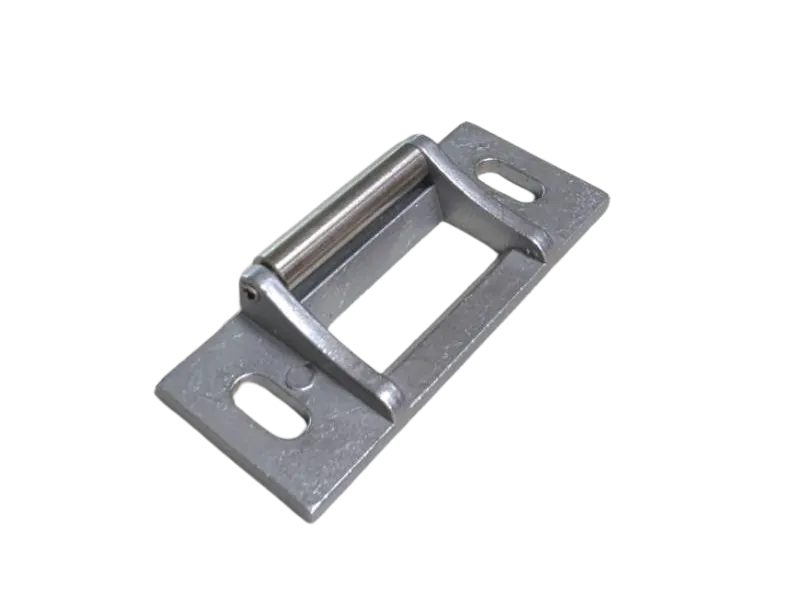

The S-62-AL/BK Roller Strike is a heavy-duty roller strike plate designed specifically for use with the Well Laud 1062 rim-type exit device. Featuring an integrated rotating roller, it converts sliding friction into rolling contact when the 1062 latch bolt engages. This targeted design ensures smooth latching, significantly reduces door-closing noise, and minimizes physical wear on the exit device assembly.

Key Features

• Dedicated 1062 Compatibility: Specifically engineered with precise physical dimensions to serve as the exact-fit strike plate for the Well Laud 1062 exit device, ensuring perfect latch alignment.
• Dual-Thickness Shims for Flexible Adjustments: Includes multiple strike shims in two precise thicknesses (1/8" and 1/16") to easily accommodate various door stop heights and frame offsets, ensuring the door closes smoothly and latches securely.
• Smooth Roller Friction Reduction: Equipped with a precision-engineered metal roller that minimizes latch bolt friction, allowing the door to close smoothly and latch securely with minimal force.
• Durable Die-Cast Zinc Construction: Built with a solid die-cast zinc alloy body to deliver strong impact resistance and long-lasting durability in high-frequency commercial applications.
• Architectural Finish Options: Available in Aluminum painted or Electric Black finishes to blend seamlessly with standard commercial storefront door frames.

Technical Specifications

• Product Type: Roller Strike Plate (specifically for model 1062)
• Dimensions: 1-1/8" x 2-3/4" (approx. 28.6 mm x 69.8 mm)
• Material: Die-cast zinc alloy body
• Finish: Aluminum (AL) or Electric Black (BK)
• Origin: Made in Taiwan

Applications & Use Cases

This roller strike is engineered exclusively for use with the Well Laud 1062 rim exit device. It serves as the dedicated frame-side hardware for any commercial storefront, school, hospital, or office door equipped with the 1062 system, ensuring smooth, low-friction closing and quiet, secure latching. It is also the exact-fit replacement part for maintaining or retrofitting existing 1062 installations.

Packaging & Delivery

• Packaging Configuration: 1 set per nylon bag; 150 set per master carton.
• Box Contents: Roller strike plate, adjustment shims (includes 1/8" and 1/16" thicknesses), and installation screws.
• Lead Time: 45 days upon receipt of official deposit.
• Origin: Made in Taiwan.
